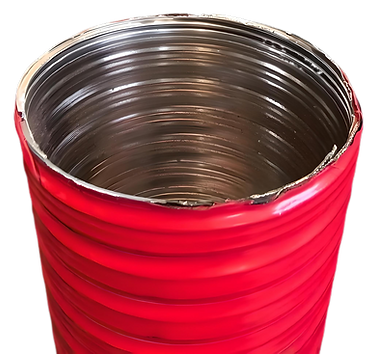

FLIXS SRSSDP-TL - Semi-Rigid Stainless Steel Ventilation Duct with Thermolaminated Membrane
The FLIXS SRSSDP-TL (Semi-Rigid-Stainless Steel-Double Wall with Thermolaminated Membrane) is an advanced ventilation duct, designed to be cast into structural concrete slabs.
PRODUCT DETAILS
-
Specific design for concrete slabs : The SRSSDP-TL is designed to be integrated into concrete slabs, offering exceptional resistance to corrosion thanks to its thermolaminated membrane.
-
Smooth interior surface : Helps reduce pressure losses, ensuring better energy efficiency.
-
7-Facet Seal : Ensures a perfect seal and eliminates water or air leaks, even in humid or condensing conditions.
-
Flexibility and robustness : Can be bent 90 degrees without deformation, ensuring easy installation and no loss of shape.
-
Screwless Installation : No screws required, eliminating debris buildup and simplifying maintenance.
Technical specifications
-
Materials : Grade 304L stainless steel with thermolaminated membrane
-
Available diameters : 4", 5", 6"
-
Maximum length : Up to 50' (custom length available)
-
Bending diameter : 1.5 to 2 times the diameter of the duct
-
Maximum air speed : 4000 ft/min
-
Positive Static Pressure : 15 in. WC Continuous
-
Negative Static Pressure : 15 in. WC Continuous
-
Temperature range : -60°C to 75°C
-
Duct thickness : 0.01'' (0.26 mm)
USES
The FLIXS SRSSDP-TL is ideal for ventilation systems installed in concrete slabs, whether in residential, commercial or industrial buildings.
Its unique design provides a durable, high-performance solution for projects requiring unmatched corrosion resistance and flexibility.
CERTIFICATIONS
AREAS OF APPLICATION
Technical Sheets and Installation Tutorial
DOWNLOADABLE DOCUMENTATION
INSTALLATION VIDEO
Frequently Asked Questions
Why choose FLIXS SRSSDP-TL for ventilation systems in concrete slabs?
The FLIXS SRSSDP-TL is designed specifically for integration into concrete slabs, offering increased corrosion resistance thanks to its thermolaminated membrane and optimum performance in demanding environments.
Does FLIXS SRSSDP-TL withstand pressure when pouring concrete?
Yes, the FLIXS SRSSDP-TL is designed to withstand the pressures exerted during concrete pouring without losing its shape or watertightness.
What does the FLIXS certification as an Air Duct mean?
The FLIXS Air Duct certification according to ASTM E814 and CAN/ULC S115 guarantees its fire resistance and airtightness. This ensures that the FLIXS effectively protects against the spread of fire and gases, while optimizing ventilation systems installed in concrete slabs.
Is the FLIXS SRSSDP-TL easy to install?
Yes, the FLIXS SRSSDP-TL is designed to be easily foldable and does not require additional fittings, which simplifies installation in concrete slabs. However, it is important that the installation is carried out by a licensed professional, as it requires specific skills to ensure compliance with safety standards.
